Fan

Fan Motor Module

---

Overview

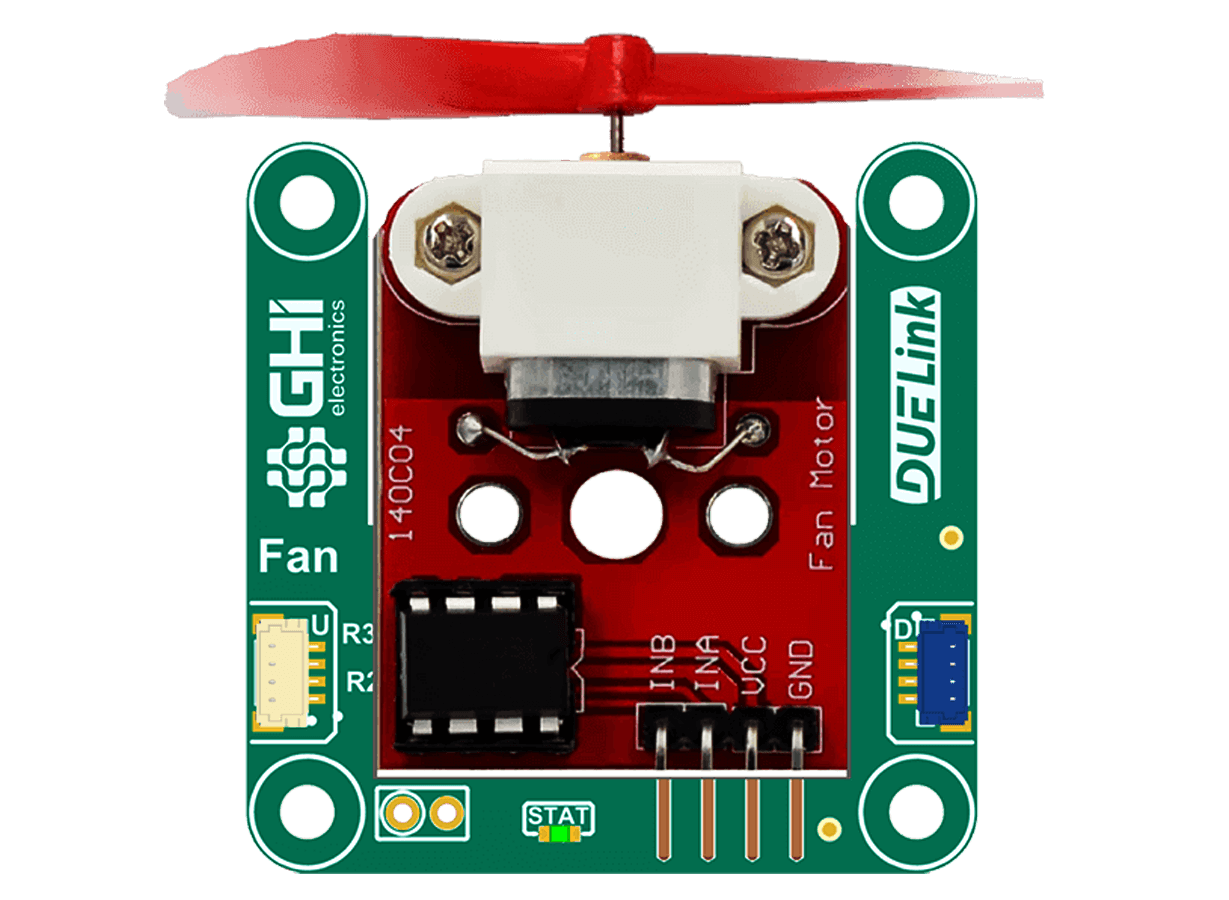

Fan Motor Module

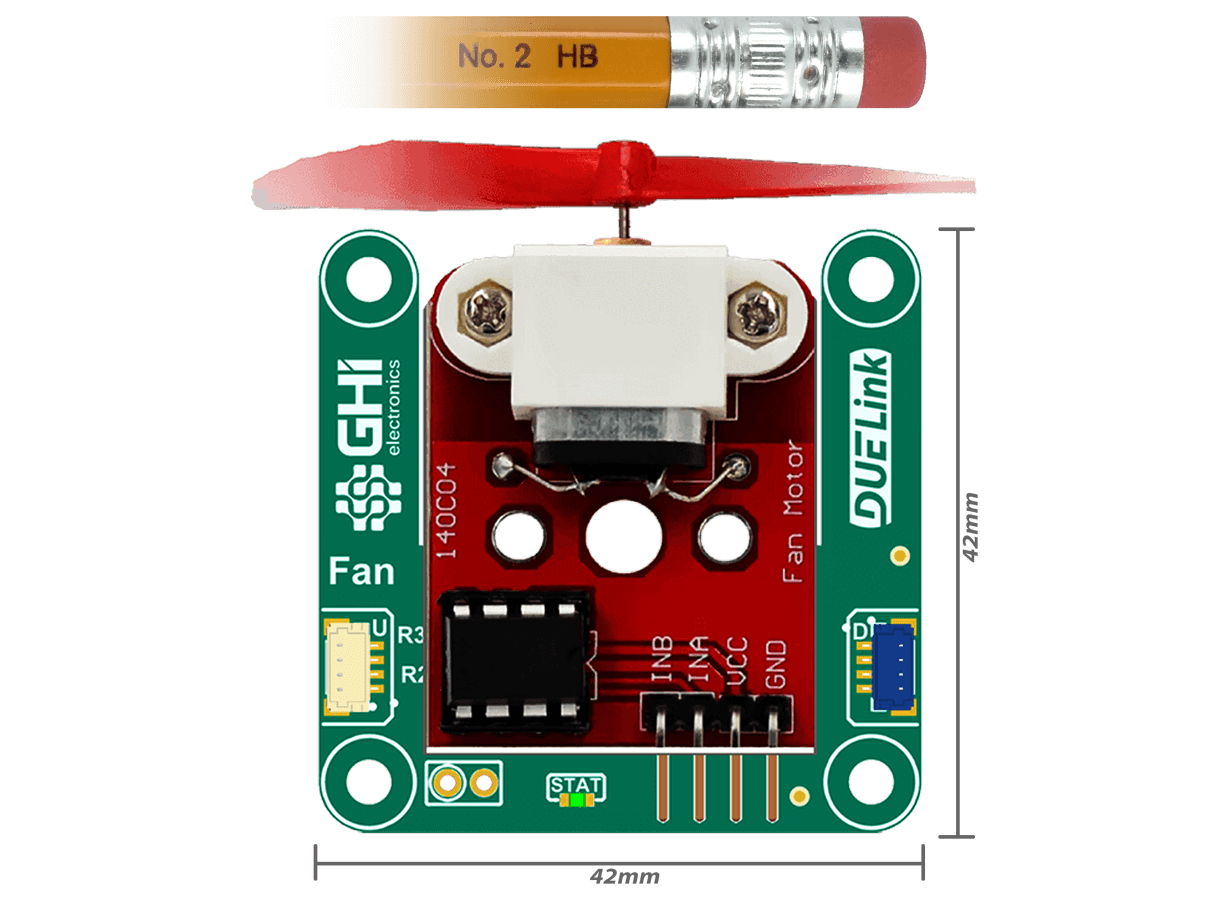

Key features • On-board motor • 2 blade fan • 42x42mm Overall Dimension

Resources 📄Schematics 🔩3D STEP file

Drivers

Function	Description
Fan(speed)	speed: -100 to 100

The Code!

Modules ship with this script preloaded. Use Console to reload or modify the drivers. Additionally, some languages, such as Python, include DUELink.Engine.Record() for recording scripts directly from the host.

########## Fan Driver ###########
fn Fan(s)
    if s >100
        s=100
    end
    if s <-100
        s=-100
    end

    if s<0
    s=s*-1
        pwrite(3,s/100)
        dwrite(4,0)
    else
        pwrite(4,s/100)
        dwrite(3,0)
    end
fend
##### User Code Starts Here #####

Samples

Script

Use Console to modify the default driver by adding this sample.

# Append this code at the bottom of the script, right after the driver.
# You MUST keep the driver code!!

Python

from DUELink.DUELinkController import DUELinkController
import time
availablePort = DUELinkController.GetConnectionPort()
duelink = DUELinkController(availablePort)

JavaScript

//code

Projects

Arduino

This project uses Arduino software running on DueDuino to show values on the screen.


Follow the Arduino page instructions on loading and using the arduino tools.

The Code!

Setup()
{

}
Loop()
{

}

RPI Pico

Add something!

---

Ordering Info

Description	Part Number	Price
Fan Motor	GDL-ACFAN-A	$00.00
