Relay P16

16 Port Relay Controller

Overview

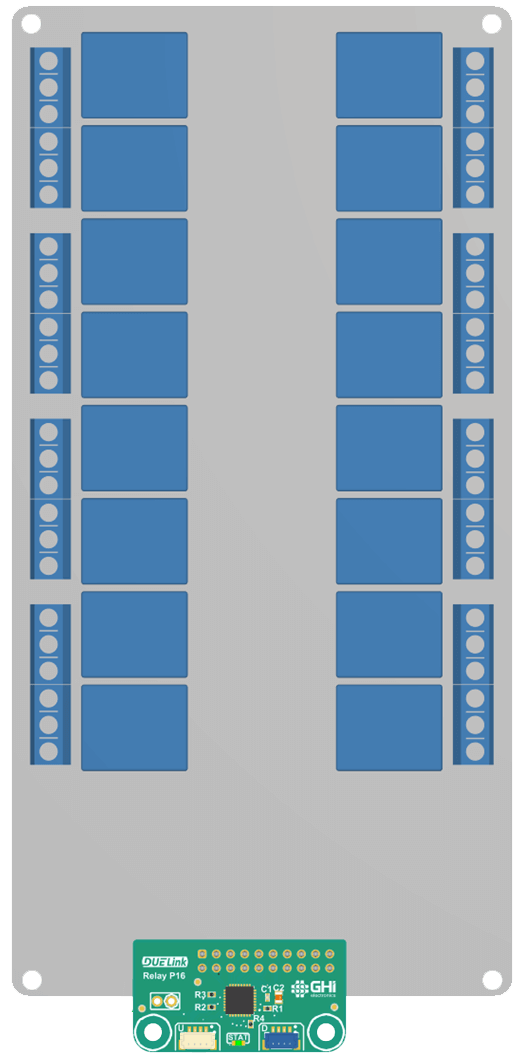

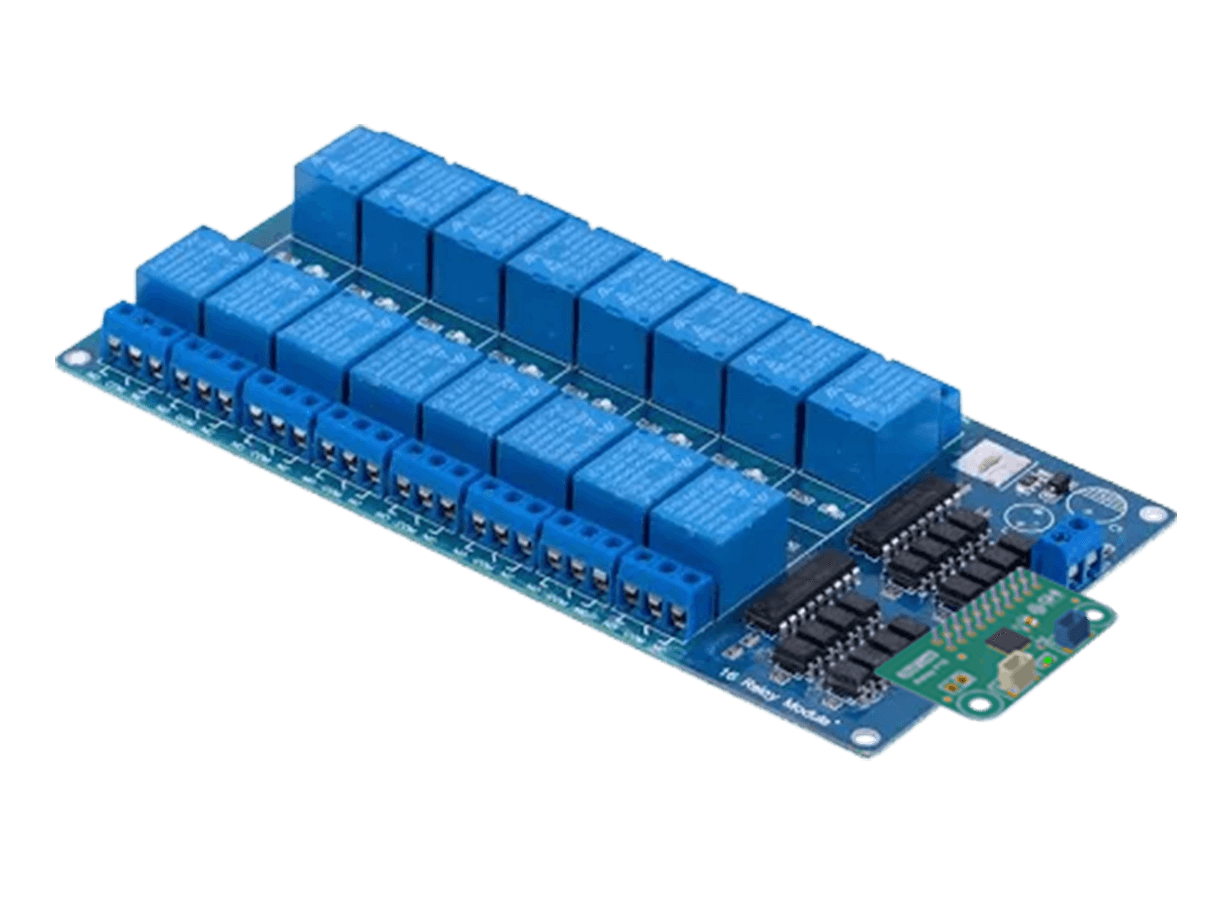

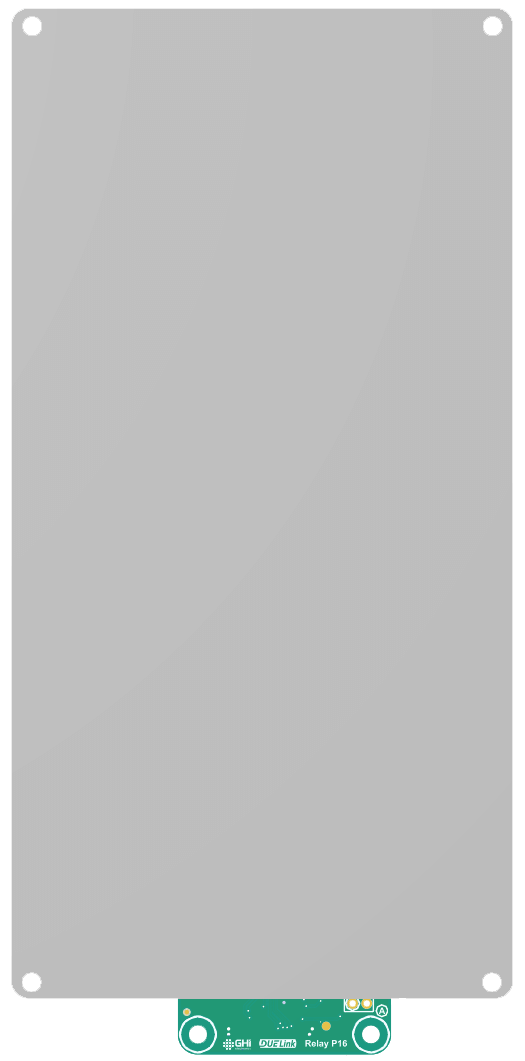

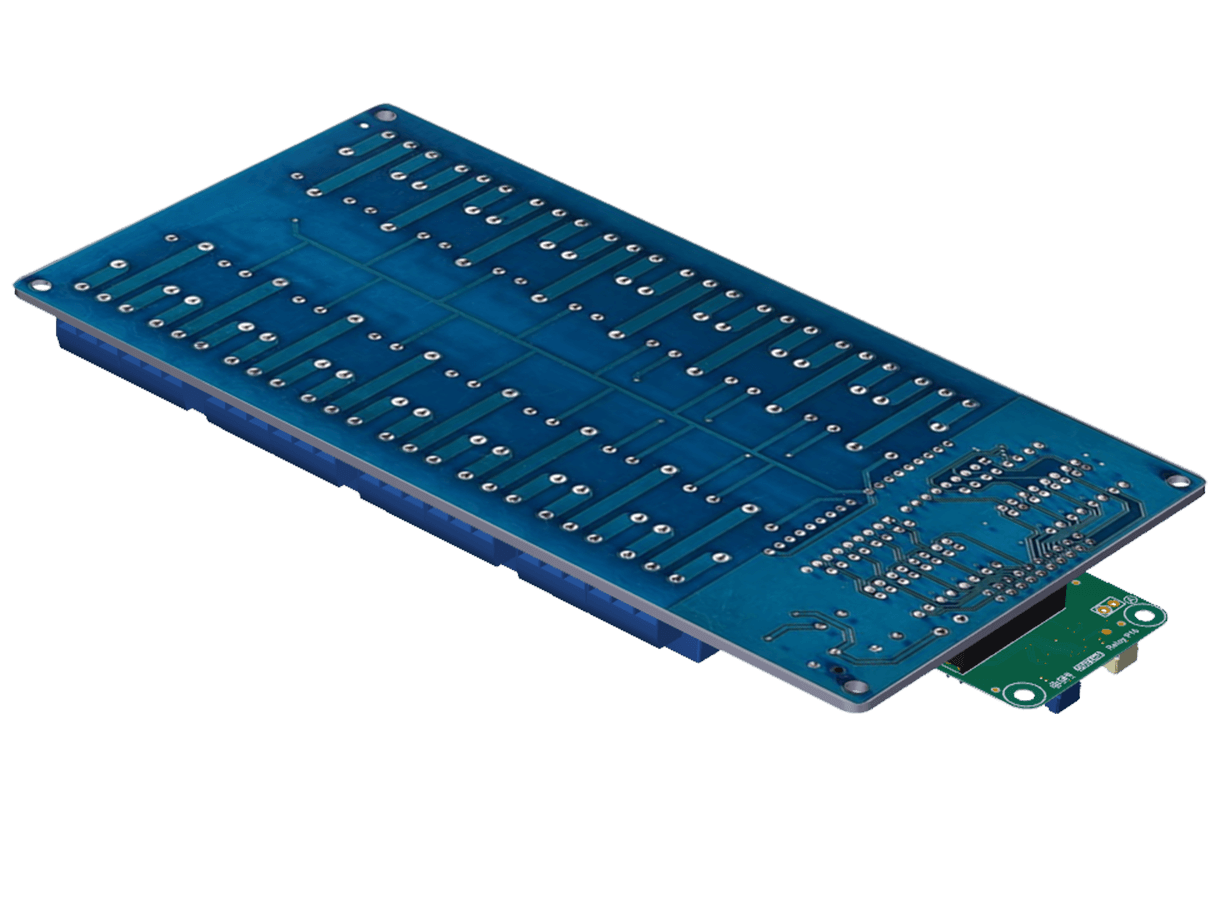

16 Port Relay Controller

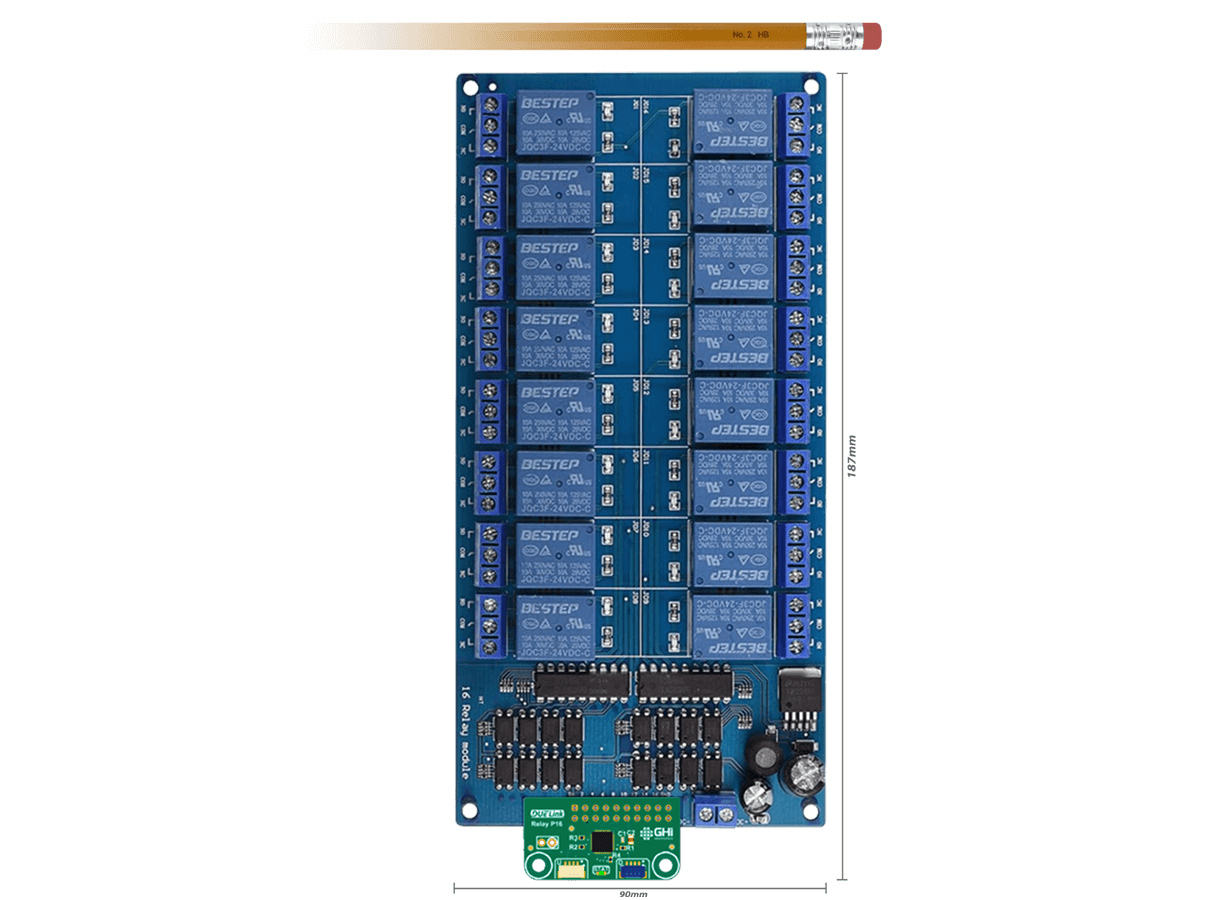

Key features • 16 Screw terminal ports • 90x187mm Overall Dimension

Resources 📄Schematics 🔩3D STEP file 📚3D Viewer ▶YouTube Videos ⁃ The Making of John Due ⁃ Another video

Drivers

Function	Description	Use
Set(index, value)	index: start from 1 to 16. Value 1: On, 0: Off
DVer()	This driver version.

The Code!

Modules ship with this script preloaded. Use Console to reload or modify the drivers. Additionally, some languages, such as Python, include DUELink.Engine.Record() for recording scripts directly from the host.

##### Driver Code Starts Here ###
fn Send(r, v)
    if v = 1
        dwrite(r, 0)
    else
        dread(r, 0)
    end
fend

fn Set(r, v)
    if (r = 1)
        Send(11, v)
    end

    if (r = 2)
        Send(7, v)
    end

    if (r = 3)
        Send(8, v)
    end

    if (r = 4)
        Send(9, v)
    end

    if (r = 5)
        Send(6, v)
    end

    if (r = 6)
        Send(5, v)
    end

    if (r = 7)
        Send(4, v)
    end

    if (r = 8)
        Send(3, v)
    end

    if (r = 9)
        Send(2, v)
    end

    if (r = 10)
        Send(1, v)
    end

    if (r = 11)
        Send(12, v)
    end

    if (r = 12)
        Send(13, v)
    end

    if (r = 13)
        Send(15, v)
    end

    if (r = 14)
        Send(14, v)
    end

    if (r = 15)
        Send(16, v)
    end

    if (r = 16)
        Send(10, v)
    end
fend

fn DVer()
    return 0.1
fend
##### User Code Starts Here #####

Samples

Script

Use Console to modify the default driver by adding this sample.

# Append this code at the bottom of the script, right after the driver.
# You MUST keep the driver code!!
while 1
  Set(2, 1) # turn on relay 2
  wait(1000)
  Set(2, 0) # turn off relay 2
  wait(2000)
wend

Python

from DUELink.DUELinkController import DUELinkController
import time
availablePort = DUELinkController.GetConnectionPort()
duelink = DUELinkController(availablePort)

JavaScript

//code

Projects

Coming soon!

---

Ordering Info

Description	Part Number	Price
Relay P16	GDL-ACRELAYP16-A	$00.00
