BeagleBoard

BeagleBoard

BeagleBoard has many open-source offerings and they all work with the DUELink ecosystem.

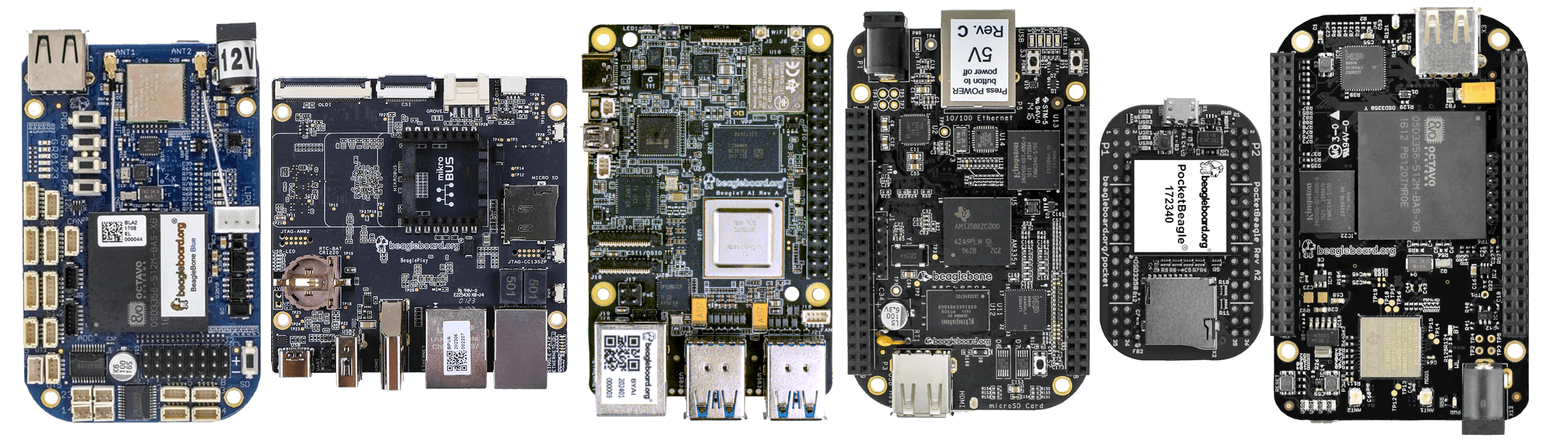

BeagleBoard Family of Products

Any of the Hosted Language options can be use on these boards. Depending on the boards, there might be an easier way to connect DUELink modules.

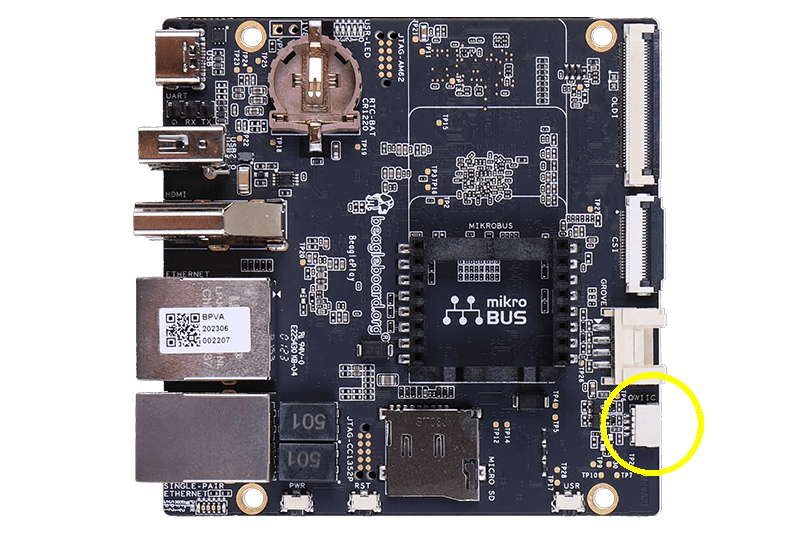

BeaglePlay​

This board has a built in JST connector with I2C signals, I2C5 to be exact! Their Qwicc Example is a good starting point on how to access the I2C bus. Consider this as a DUELink Downstream socket.

BeagleBoard

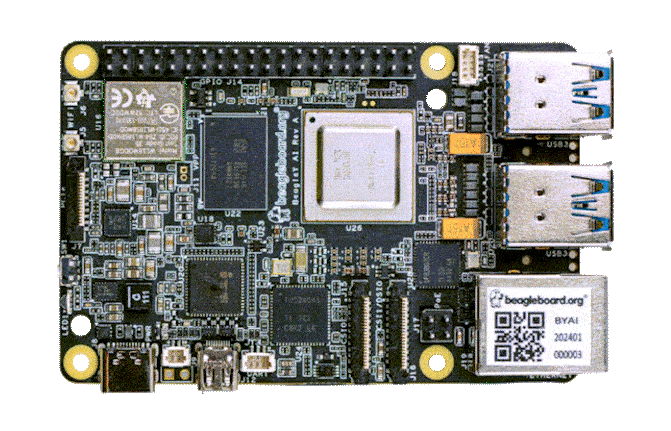

BeagleY-AI​

This board has a Raspberry PI compatible footprint/pinout. We recommend using DUELink DuePI, which adds a display, a buzzer, a terminal block, and Downstream socket.

The hat uses UART for communication. Here is an example to show the system’s IP address on the display.

BeagleBonePlay with DUEPI

Other Beagles

Use the Breakout module to wire I2C or UART from any Beagle board and use one of its sockets as DUELink Downstream connection.

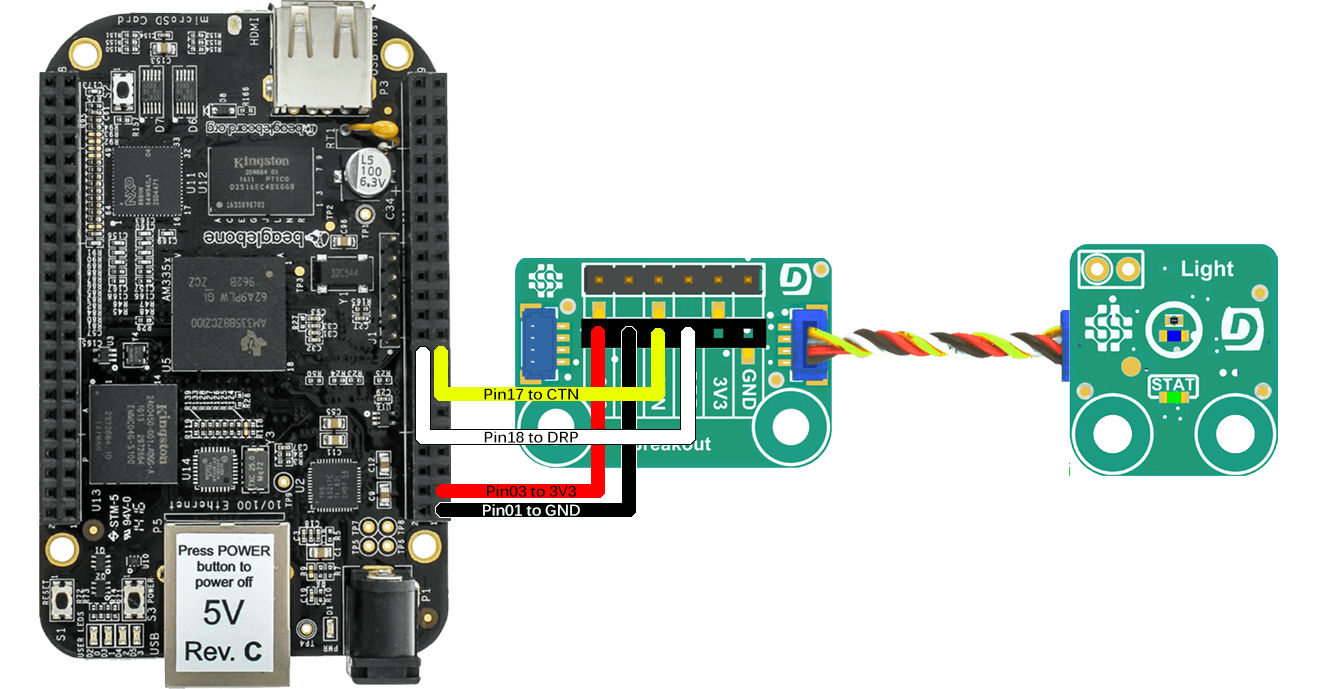

Here is BeagleBone Black connected to a light sensor.

BeagleBone Black connected to Light Sensor

//code
