Button L7

7 Button Module

---

Overview

7 Button Module

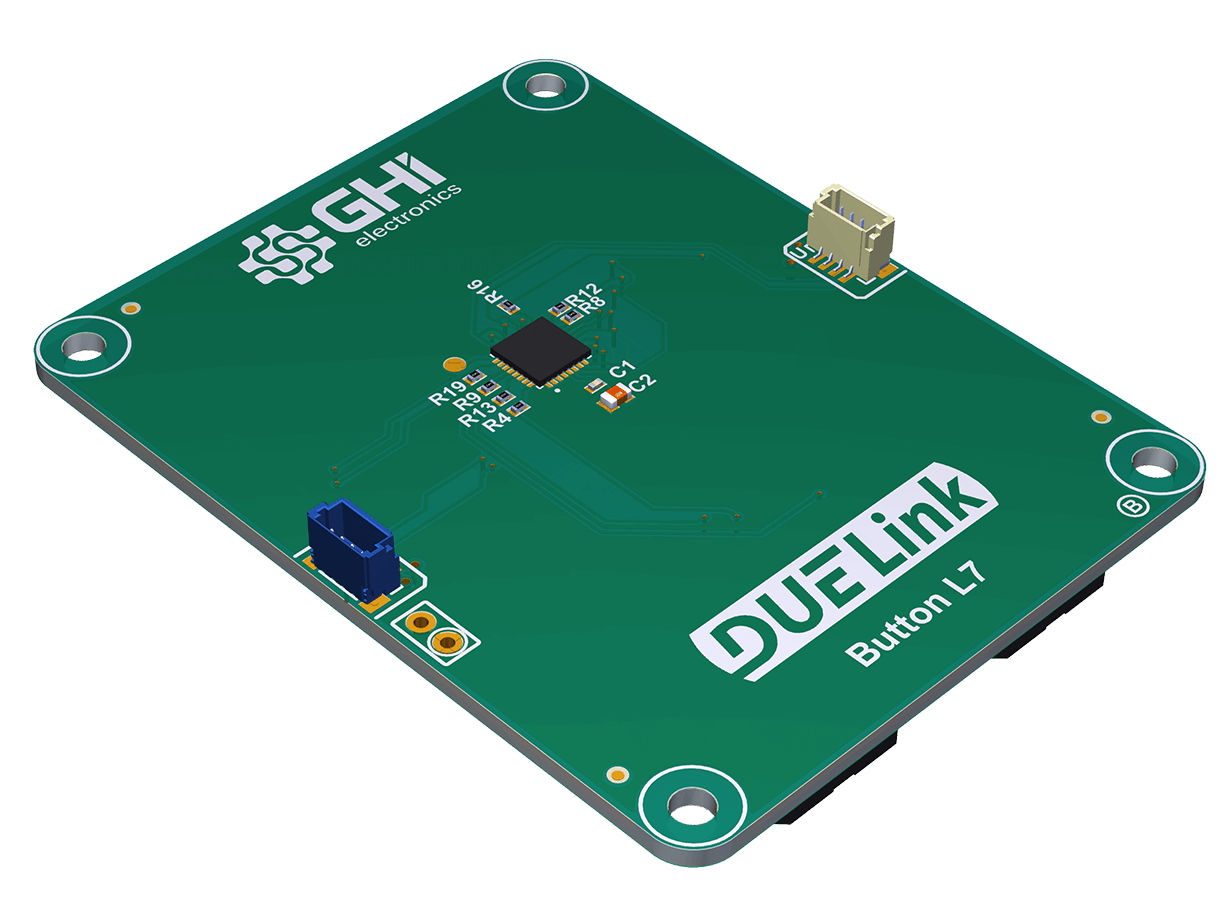

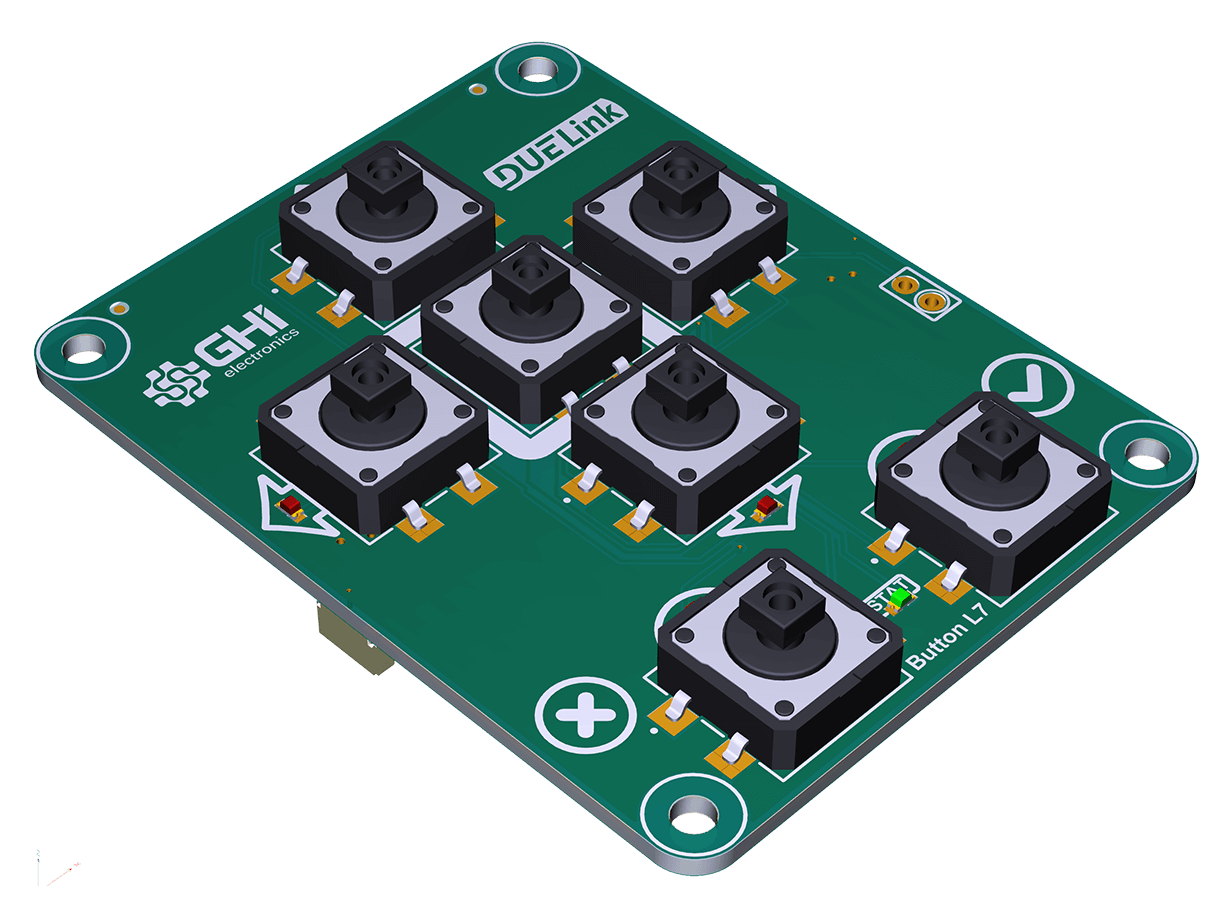

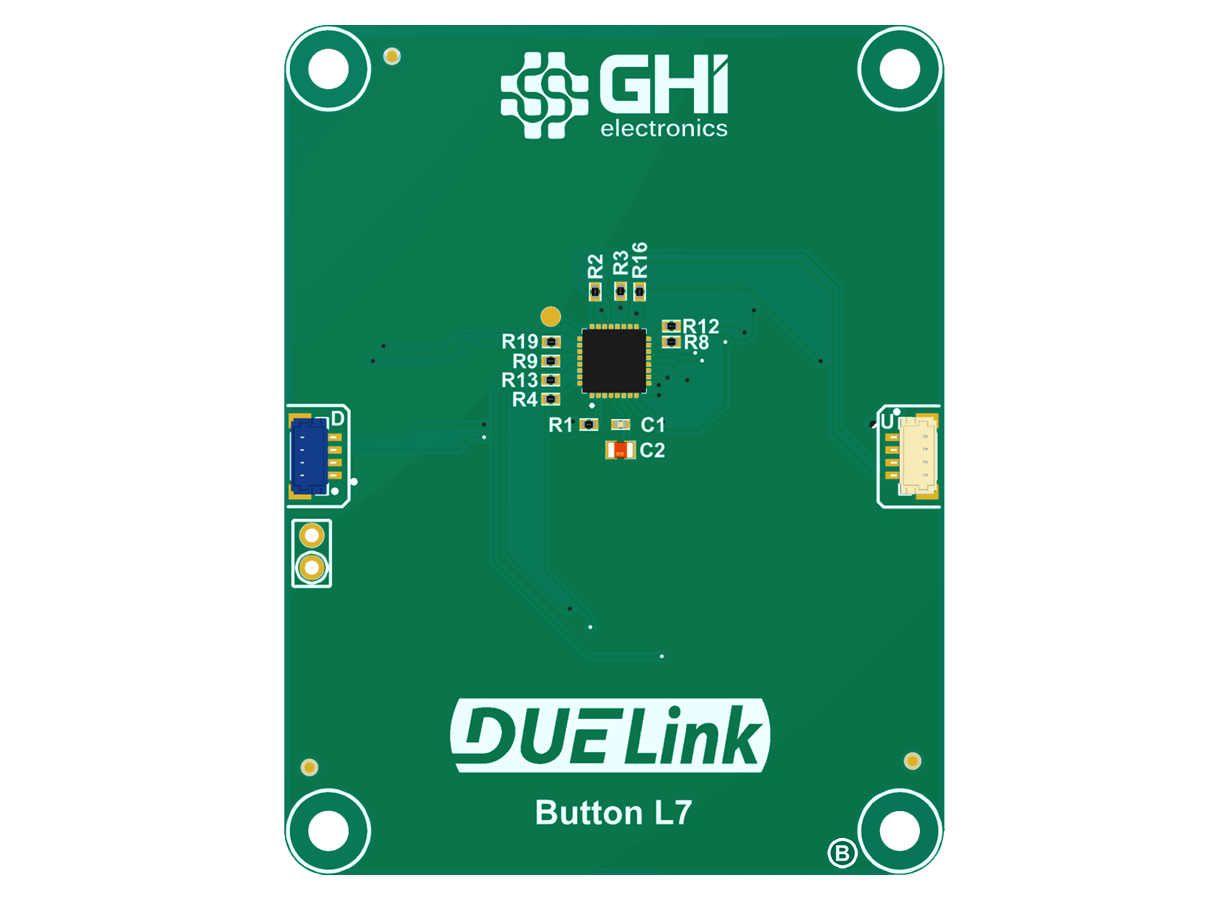

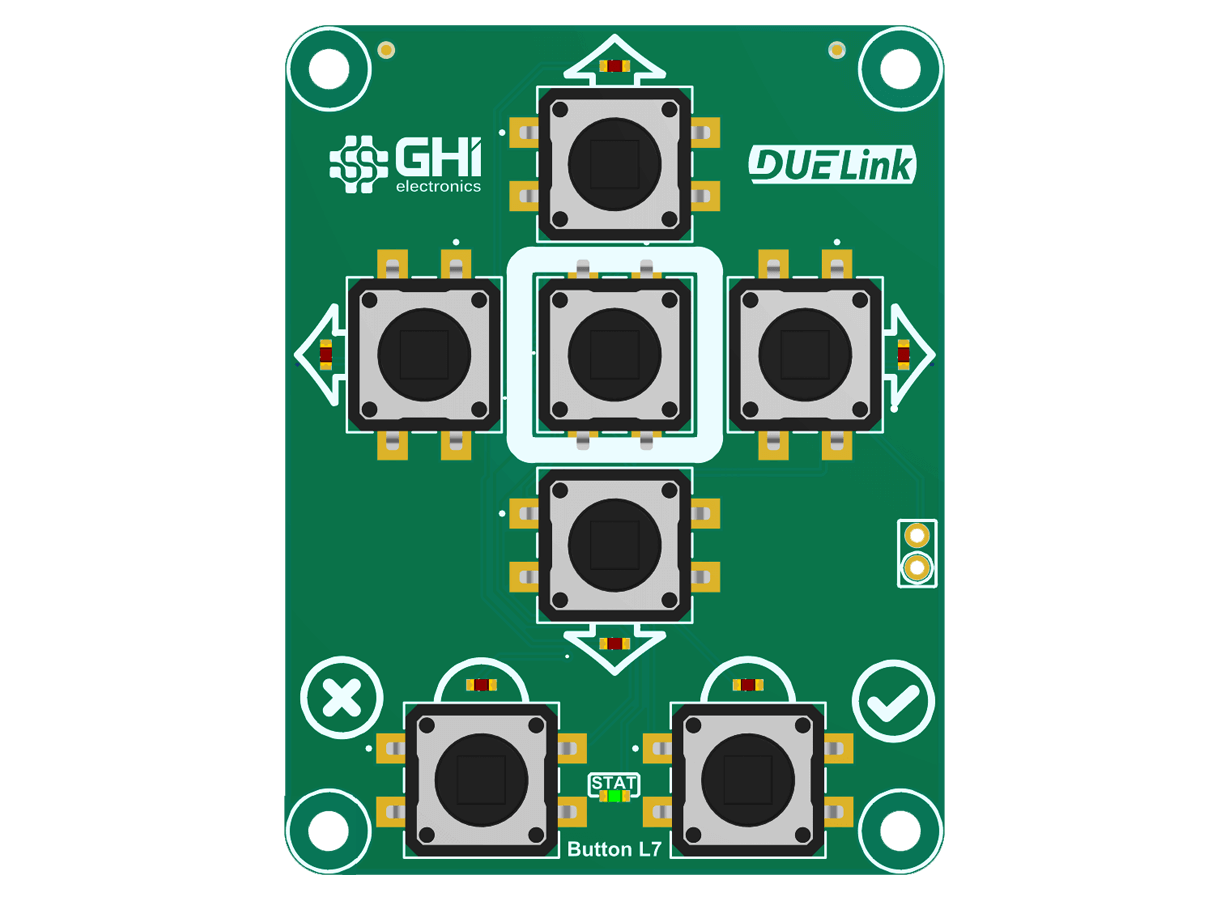

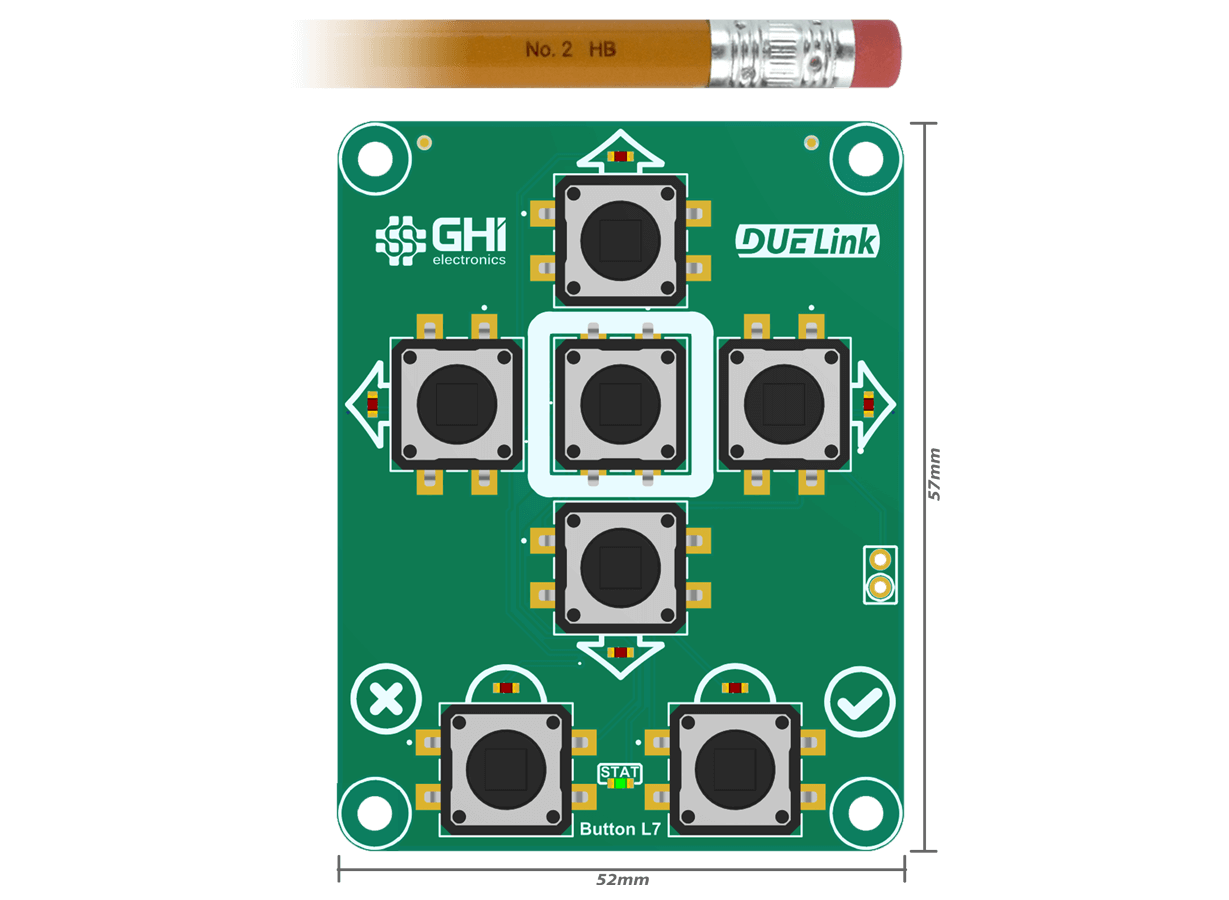

Key features • 7 Buttons • 52x57mm Overall Dimension

Resources 📄Schematics 🔩3D STEP file

Drivers

Function	Description
Init()	Initialize device
DVer()	This driver version.
BtnPress(b)	return 1 if button b pressed, b is alias: (up, down, left, right, back, forward, enter)
BtnRelease(b)	return 1 if button b released, b is alias: (up, down, left, right, back, forward, enter)
SetLed(b, v)	set led, b is alias: (up, down, left, right, back, forward), v: 0 off, 1: on

The Code!

Modules ship with this script preloaded. Use Console to reload or modify the drivers. Additionally, some languages, such as Python, include DUELink.Engine.Record() for recording scripts directly from the host.

##### Driver Code Starts Here ###
# Interrupt mode:
#   Return button state by interrupt. A read clear last value to 0.
#   If no read, the last value change will be kept for two seconds then reset to 0 if no read.

# Direct mode:
#   Return button state as is

_m = 0 # 0: interrupt - default, 1: direct mode

Alias(up=0x0109, down= 0x0208, left=0x0311, right=0x040c, back=0x050D, forward=0x060E, enter=0x07FF)

fn Init()
    Mode(0)

    # initialize leds
    dwrite(9, 0) # Led up
    dwrite(8, 0) # Led down
    dwrite(17, 0) # Led left
    dwrite(12, 0) # Led right
    dwrite(13, 0) # Led back
    dwrite(14, 0) # Led forward
fend

fn Mode(m)
    _m = m

    if _m = 0
        # initialize buttons
        btnen(1, 1, 1) # Btn Up
        btnen(2, 1, 1) # Btn Down
        btnen(3, 1, 1) # Btn Left
        btnen(4, 1, 1) # Btn Right
        btnen(5, 1, 1) # Btn Back
        btnen(6, 1, 1) # Btn Forward
        btnen(7, 1, 1) # Btn Enter
    else
        btnen(1, 0, 0) # Btn Up
        btnen(2, 0, 0) # Btn Down
        btnen(3, 0, 0) # Btn Left
        btnen(4, 0, 0) # Btn Right
        btnen(5, 0, 0) # Btn Back
        btnen(6, 0, 0) # Btn Forward
        btnen(7, 0, 0) # Btn Enter
    end
fend

fn IsPressed(b)
    b = b >> 8
    if (_m = 0)
        return btndown(b) = 1
    else
        return !dread(b, 1)
    end
fend

fn IsReleased(b)
    b = b >> 8

    if (_m = 0)
        return btnup(b) = 1
    else
        return dread(b, 1)
    end
fend

fn SetLed(l, v)
    l = l & 0xFF

    if l < 0xFF
        dwrite(l, v)
    end
fend

fn DVer()
  return 0.1
fend

Init()

##### User Code Starts Here #####

Samples

Script

Use Console to modify the default driver by adding this sample.

# Append this code at the bottom of the script, right after the driver.
# You MUST keep the driver code!!

while 1
    # Blink led up if button up pressed
    if IsPressed(up)
       SetLed(up, 1)
    else
        SetLed(up, 0)
    end

    # Blink led down if button down pressed
    if IsPressed(down)
       SetLed(down, 1)
    else
        SetLed(down, 0)
    end

    if IsPressed(left)
       SetLed(left, 1)
    else
        SetLed(left, 0)
    end

    if IsPressed(right)
       SetLed(right, 1)
    else
        SetLed(right, 0)
    end

    if IsPressed(back)
       SetLed(back, 1)
    else
        SetLed(back, 0)
    end

    if IsPressed(forward)
       SetLed(forward, 1)
    else
        SetLed(forward, 0)
    end

     # Blink stat led down if button enter pressed
    if IsPressed(enter)
        statled(1, 0, 0)
    else
       statled(0, 1, 0)
    end

    wait(100)
wend

Python

from DUELink.DUELinkController import DUELinkController
import time
availablePort = DUELinkController.GetConnectionPort()
duelink = DUELinkController(availablePort)

JavaScript

//code

Projects

Coming soon!

---

Ordering Info

Description	Part Number	Price
Button L7	GDL-HIBUTTONL7-B	$00.00
